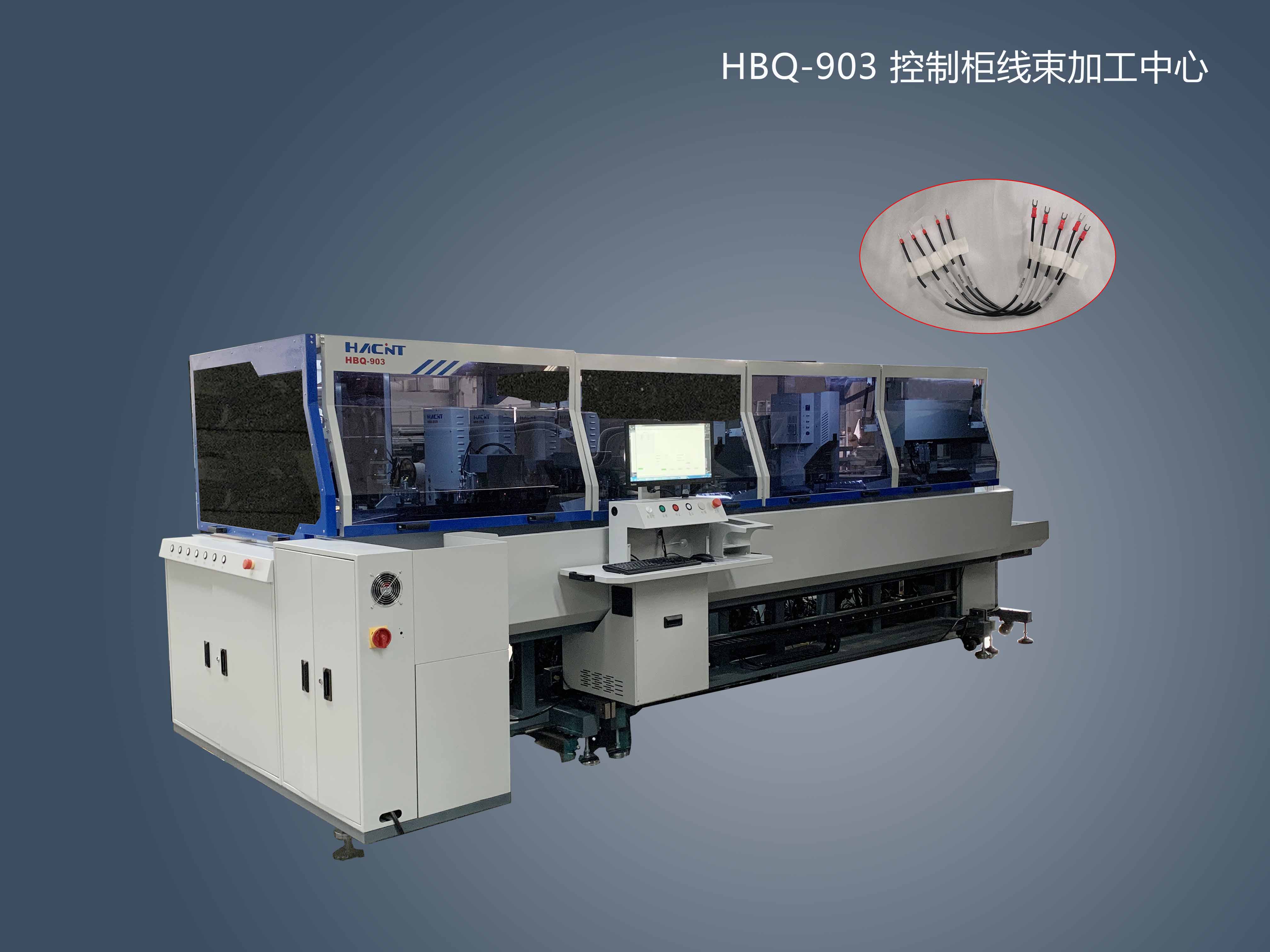

HBQ-903 Control Cabinet Wire Harness Processing Center

产品特点： ● Intelligent work order import: Customers can remotely place orders or manually input production schedules through the MES system; ● Automatic switching of different wires: It can support up to 36 types of wires for automatic online switching production, with automatic monitoring during the production process; ● Stable control system: Utilizing a renowned control system in the industry, the entire production process is controlled by an upper computer, ensuring user-friendly operation; ● Automatic production of various chain-type terminals: For chain terminals, integrated automatic cutting, clamping, handling to the crimping position, reducing changeover time, and maximizing production efficiency; ● Automatic production of various types of discrete terminals: Through the use of high-precision servo mechanisms to select and handle discrete terminals, precise switching between different terminals can be achieved, enabling one machine to perform multiple functions; ● Quick switching of multiple crimping jaws: The jaws are automatically switched using servo motor drive control, matching different types of loose terminals for crimping; ● Establishment of thermal transfer tube insertion technology: Independently developed thermal transfer module, with clear and rub-resistant printing effect; ● Flexible expansion of the work platform: The work platform can add or remove workstations according to customer's needs, enabling flexible production.

产品资料：产品视频、说明书、图片

视频

下载

产品概述产品特性技术参数相关产品

HBQ - 903 is an automated processing center developed for the power distribution cabinet industry. It can achieve functions such as automatic wire feeding, stripping, number tube loading, thermal printing, automatic material selection for various types of discrete terminals, automatic jaw switching for crimping, visual inspection of product appearance, and automatic wire collection and bundling. The improvement of the automation level can perfectly address the shortcomings of traditional manual operations, such as complex processes, high labor intensity, and inability to guarantee quality. This equipment adopts a modular design concept and can provide customized services. It can flexibly adjust the workstation layout according to the actual production situation of customers, and has good market adaptability.

● Intelligent work order import: Customers can remotely place orders or manually input production schedules through the MES system;
● Automatic switching of different wires: It can support up to 36 types of wires for automatic online switching production, with automatic monitoring during the production process;
● Stable control system: Utilizing a renowned control system in the industry, the entire production process is controlled by an upper computer, ensuring user-friendly operation;
● Automatic production of various chain-type terminals: For chain terminals, integrated automatic cutting, clamping, handling to the crimping position, reducing changeover time, and maximizing production efficiency;
● Automatic production of various types of discrete terminals: Through the use of high-precision servo mechanisms to select and handle discrete terminals, precise switching between different terminals can be achieved, enabling one machine to perform multiple functions;
● Quick switching of multiple crimping jaws: The jaws are automatically switched using servo motor drive control, matching different types of loose terminals for crimping;
● Establishment of thermal transfer tube insertion technology: Independently developed thermal transfer module, with clear and rub-resistant printing effect;
● Flexible expansion of the work platform: The work platform can add or remove workstations according to customer's needs, enabling flexible production.

Type	HBQ-903
Wire Diameter Range	0.75-4mm²
Stripping Length	0.5-18mm
Length of Number Tube	15-30mm
Wire Feeding speed	3m/s(max)
Length Accurancy	±（1+0.2%*L）mm
Power Supply	380V/50Hz
Air Supply	>0.5 MPa
Number of processed wire harness	6 pcs（It can be expanded to Max 36 cables according to customer requirements）
